  4. TE COOLING UNIT 200W WITH INTEGRATED POWER SUPPLY

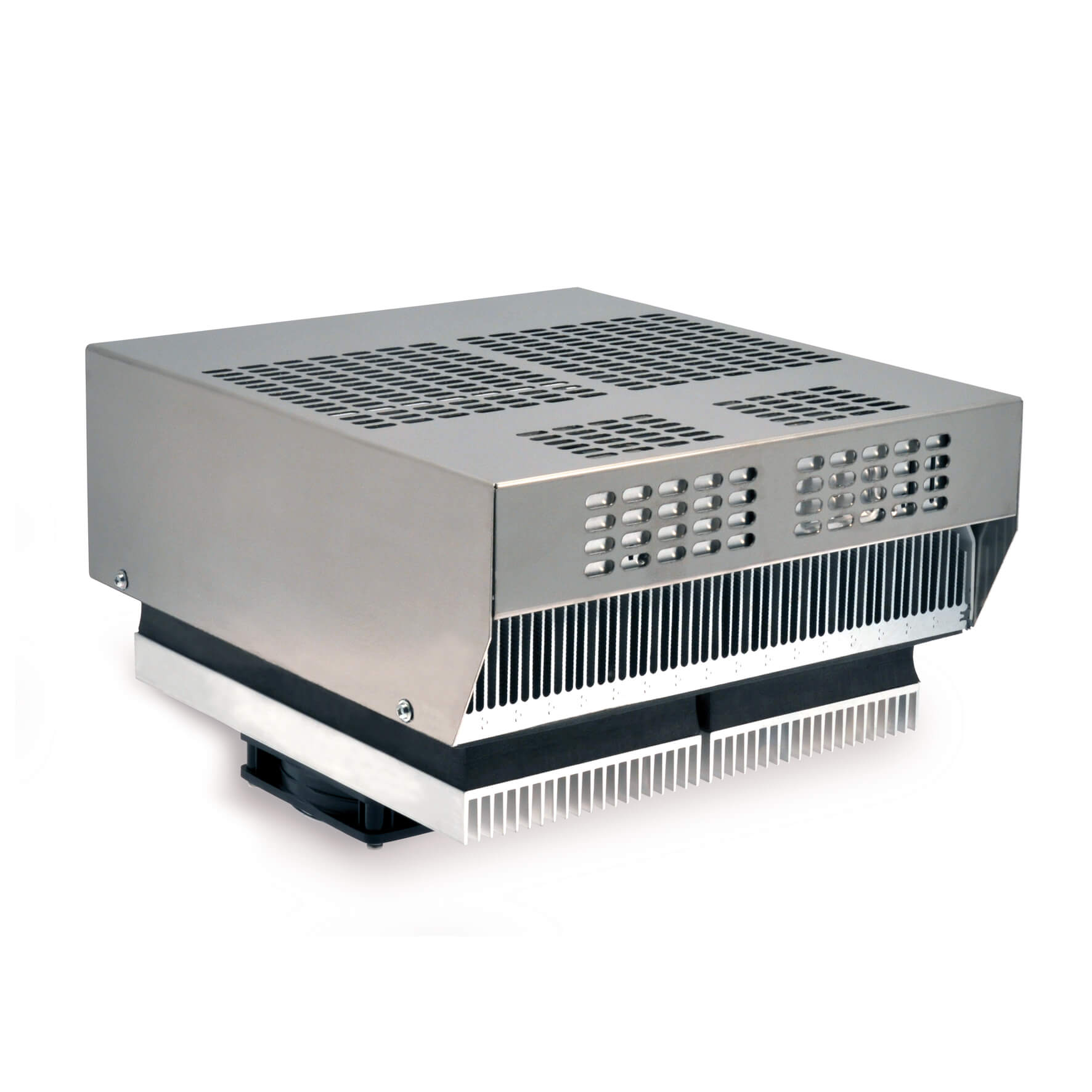

TCU200AC40-SIP - TE COOLING UNIT 200W WITH INTEGRATED POWER SUPPLY

TE COOLING UNIT 200W WITH INTEGRATED POWER SUPPLY

More information: "TE COOLING UNIT 200W WITH INTEGRATED POWER SUPPLY"

Thermoelectric units are solid state devices which operate as heat pumps to transfer heat using the Peltier effect. This cost-effective solution is ideal for the climate control of small enclosure. No compressor or moving part (except the fans), no hazardous gases and not sensitive to vibrations are the main advantages.

Documentation available

Document list

Document type Format Size Action
Declaration Of Conformity EU .pdf 0.14 MB Download
Declaration Of Conformity UKCA .pdf 0.13 MB Download
3D step .zip 0.30 MB Download
Mounting Instructions .pdf 1.06 MB Download

APPROVALS

Approvals CE; UKCA

ELECTRICAL DATA

Appliance Class II
Frequency 50/60 Hz
Operating Voltage 88-264 V a.c.
Rated Power 245 W
Rated Voltage 115-230 V a.c.

ENVIRONMENTAL AND THERMAL DATA

IP Protection Degree IP55 Warm Side Fan
Operating Temperature -20÷70 °C
Storage Temperature -20÷70 °C

GENERIC DATA

Casing Material Stainless Steel
Electrical Connection Terminal Block
Fixing System Screws

PERFORMANCE

Rated Cooling Power 201 W
