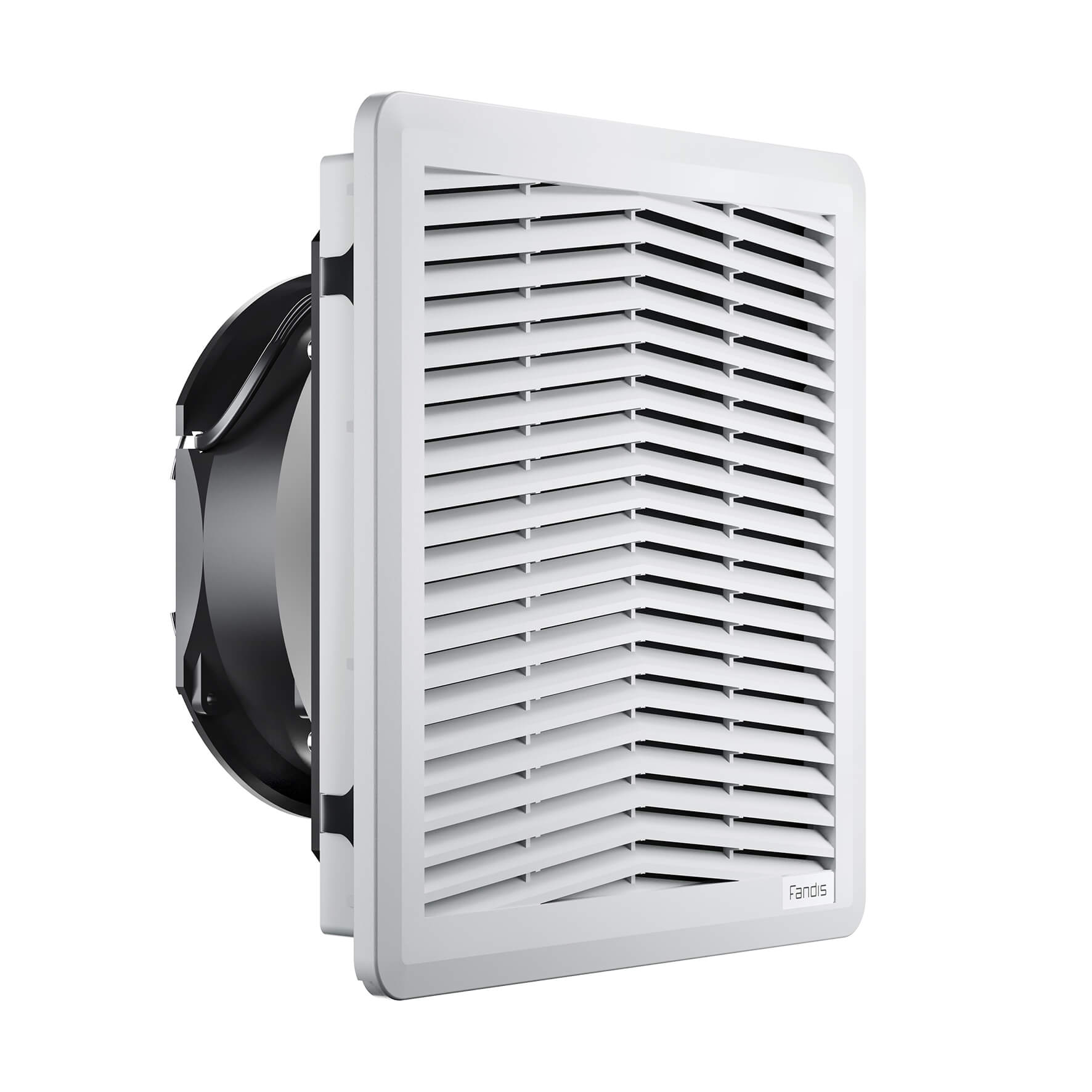

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
| Document type | Format | Size | Action |
|---|---|---|---|
| Declaration Of Conformity EU | 0.21 MB | Download | |
| Declaration Of Conformity UKCA | 0.20 MB | Download | |
| 2D | .zip | 0.21 MB | Download |
| 3D step | .zip | 0.71 MB | Download |
| Mounting Instructions | 0.78 MB | Download | |
| UL Certificate of compliance – Component | 0.27 MB | Download | |
| UL Certificate of compliance – Listed | 0.27 MB | Download |
| Approvals | CE; cURus; cULus; cCSAus; UKCA |
|---|
| Appliance Class | I |
|---|---|
| Frequency | 50/60 Hz |
| Motor Protection | Thermally Protected |
| Operating Voltage | 207-253 V a.c. |
| Rated Current | 0.14/0.16 A |
| Rated Power | 32/36 W |
| Rated Voltage | 230 V a.c. |
| IP Protection Degree | IP54 |
|---|---|
| Operating Temperature | -30÷55 °C |
| Storage Temperature | -40÷70 °C |
| Airflow Direction | Direct |
|---|---|
| Casing Material | PC/ABS UL94 V-0 |
| Electrical Connection | Screwless Terminal Block |
| Fan Noise | 50/55 dB(A) |
| Filter Class | G3 EN 779 |
| Filter Class | ISO coarse 55% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 40000 h at 40 °C |
| RAL Number | 7035 |
| Spare Parts Filter Media | M15FPF-EU3 |
| Wires Section | 0.75-2.5 mm² |
| Wires Section | 20-14 AWG |
| Bearing | Ball Bearing |
|---|---|
| Mounting Wall Thickness | 1.3-3.7 mm |
| Airflow with Exhaust Filter | 159/190 m³/h |
|---|---|
| Max Airflow | 230/270 m³/h |
| Max Static Pressure | 115/155 Pa |
| UL Environmental Type Rating | Type 12 |
|---|---|
| UL File Number Listed | E500932 |
| UL File Number Recognized Component | E237844 |
| UL Surrounding Temperature | 55 °C |
