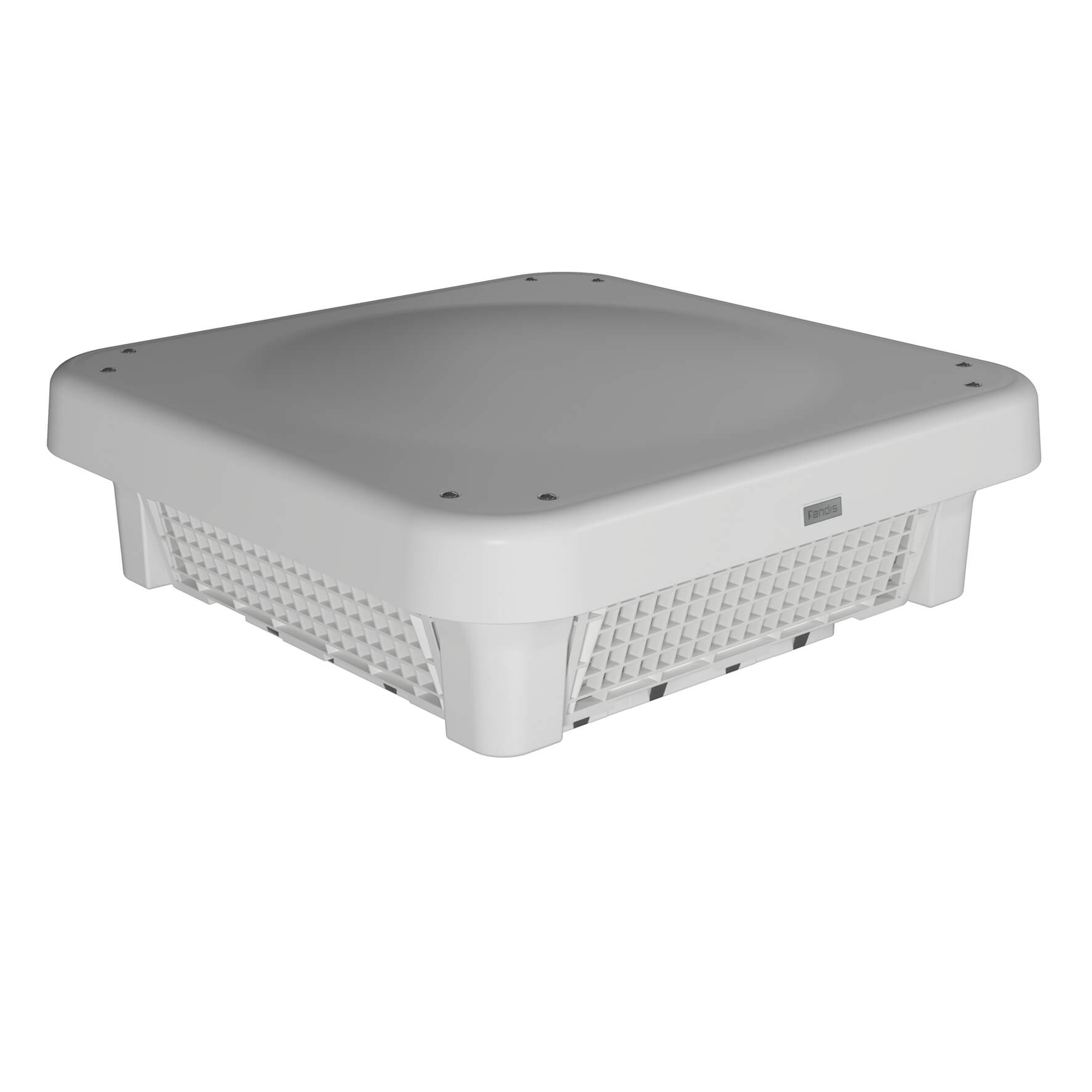

The TP series roof-mounted exhaust units provide an effective solution for dissipating heat from the top section of electrical panels. Suitable for both indoor and outdoor applications, they ensure high airflow performance even in confined spaces where wall-mounted installation is not possible. Depending on environmental conditions, they can be combined with one or more filters to enable either natural convection or forced air cooling.
| Approvals | CE; UKCA |
|---|
| Appliance Class | I |
|---|---|
| Frequency | 50/60 Hz |
| Motor Protection | Thermally Protected |
| Operating Voltage | 207-253 V a.c. |
| Rated Current | 0.95/1.34 A |
| Rated Power | 238/338 W |
| Rated Voltage | 230 V a.c. |
| IP Protection Degree | IP54 |
|---|---|
| Operating Temperature | -30÷55 °C |
| Storage Temperature | -30÷60 °C |
| Electrical Connection | Pluggable Terminal Block |
|---|---|
| Filter Class | G3 EN 779 |
| Filter Class | ISO coarse 55% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Fixing System | Snap Mounting |
| Life Expectancy | 40000/40000 h at 55 °C |
| RAL Number | 7035 |
| Spare Parts Filter Media | M007K |
| Wires Section | 0.5-2.5 mm² |
| Wires Section | 14-20 AWG |
| Bearing | Ball Bearing |
|---|---|
| Mounting Roof Thickness | 1.2-3 mm |
| Fan Max Airflow | 1510/1645 m³/h |
|---|---|
| Max Airflow | 1375/1502 m³/h |
| Max Static Pressure | 682/903 Pa |
| Optimal Operating Airflow | 1325/1449 m³/h |
