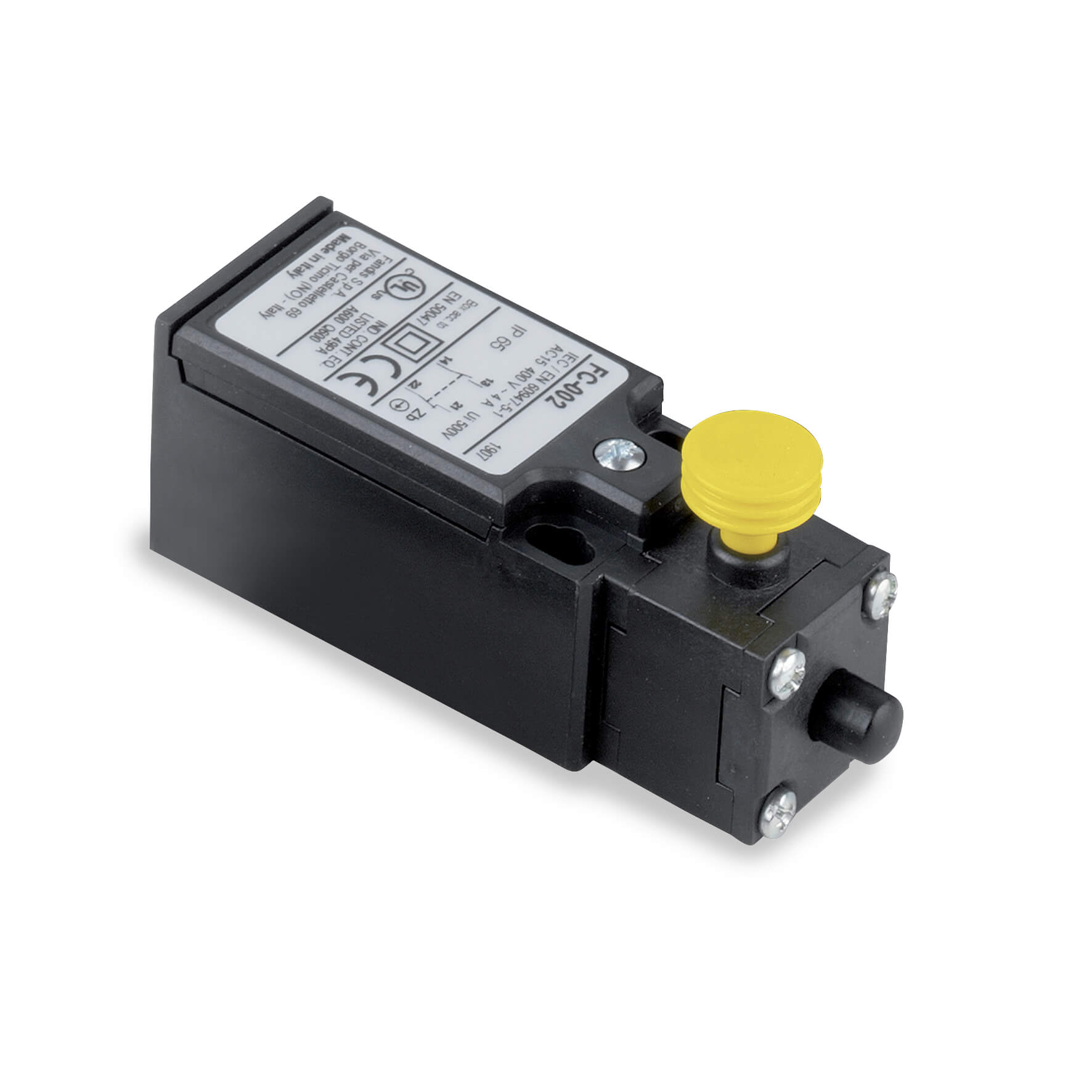

FC-002 - Limit switch with manual reset

Limit switch with manual reset

More information: "Limit switch with manual reset "

The limit switches ensure safety during maintenance work inside the electrical panels. They are applied on the frame of the cabinet and can turn on the lights, turn off a fan or a heater or cut off the power supply in general when the door is opened or closed.

Documentation available

Document list

Document type Format Size Action
Declaration Of Conformity EU .pdf 0.14 MB Download
Declaration Of Conformity UKCA .pdf 0.13 MB Download
2D .zip 0.03 MB Download
3D step .zip 0.03 MB Download

APPROVALS

Approvals CE; cULus; UKCA

ELECTRICAL DATA

Operating Voltage 24-400 V a.c.
Rated Current 10-4 A (a.c.)
Rated Current 6-0.4 A (d.c.)
Rated Voltage 24-250 V d.c.
Rated Voltage 24-400 V a.c.

ENVIRONMENTAL AND THERMAL DATA

Operating Temperature -25÷70 °C
Storage Temperature -30÷80 °C

GENERIC DATA

Electrical Connection Terminal Block
Fixing System Screws
Life Expectancy 1 Million cycles

UL DATA

UL File Number Listed E347141
