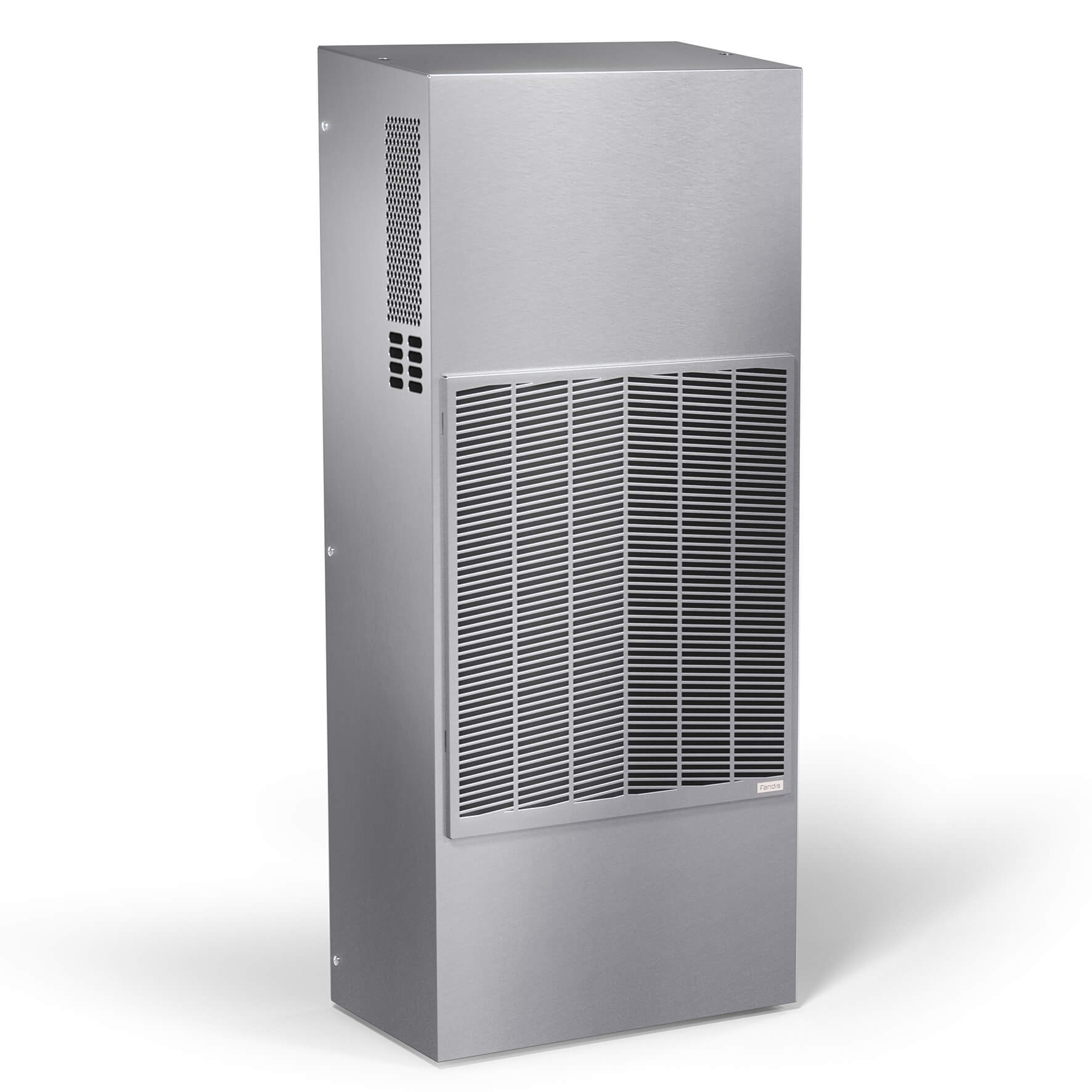

Indoor Cooling Unit 1000W 230V~1 INOX316
da parete
CCU10A231WNI6X - Indoor Cooling Unit 1000W 230V~1 INOX316
More information: "Indoor Cooling Unit 1000W 230V~1 INOX316"
The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.
Documentation available
Document list
| Document type | Format | Size | Action |
|---|---|---|---|
| 3D step | .zip | 0.57 MB | Download |
| General Safety Instructions | 0.31 MB | Download | |
| Mounting cut-out mm (in) | 0.01 MB | Download | |
| Mounting Instructions | 0.88 MB | Download | |
| Wiring Diagram | 0.03 MB | Download | |
| Declaration Of Conformity EU | 0.15 MB | Download | |
| Declaration Of Conformity UKCA | 0.14 MB | Download |
APPROVALS
| Approvals | CE; UKCA |
|---|
ELECTRICAL DATA
| Frequency | 50/60 Hz |
|---|---|
| Fuse T | 8 A |
| Max Current | 20 A |
| Rated Current | 4.2/4.6 A |
| Rated Power L35L35 | 485/565 W |
| Rated Power L35L50 | 535/645 W |
| Rated Voltage | 230 V a.c. |
ENVIRONMENTAL AND THERMAL DATA
| Operating Temperature | 20÷50 °C |
|---|---|
| Protection Degree Enclosure Side | IP54 |
GENERIC DATA
| Casing Material | Stainless Steel AISI 316 |
|---|---|
| CO2e | 0.35 t |
| Electrical Connection | Connector |
| GWP | 631 |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 MPa |
| Refrigerant Charge | 550 |
| Refrigerant Number | R513A |
PERFORMANCE
| Cooling Capacity L35L35 | 1015/1115 W |
|---|---|
| Cooling Capacity L35L50 | 815/855 W |
