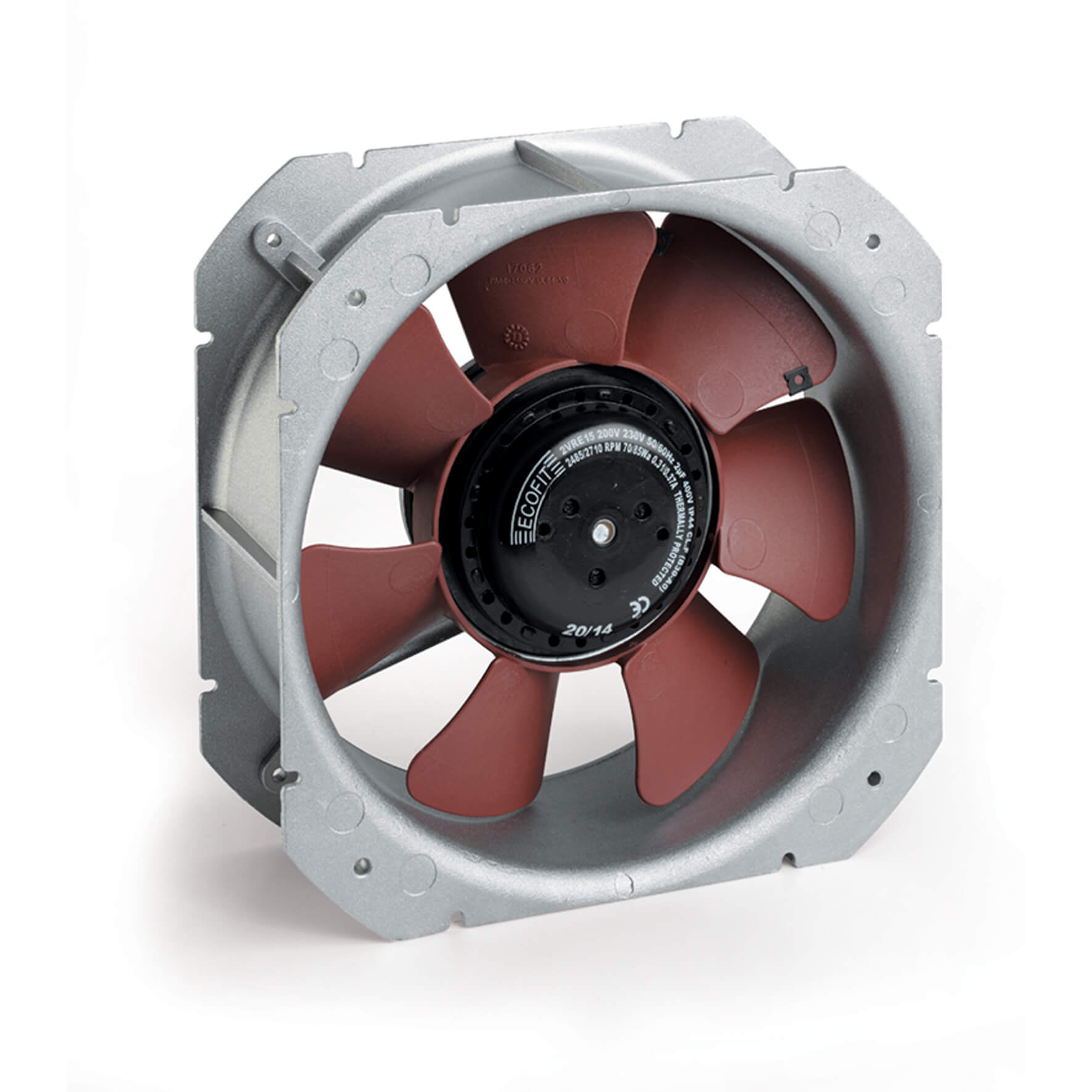

C22S12HKBD00 - FRAME FAN 218x218x83mm 115 Va.c.

FRAME FAN 218x218x83mm 115 Va.c.

More information: "FRAME FAN 218x218x83mm 115 Va.c."

Axial fans provide forced-air cooling solution to temperature-sensitive applications. Compact fans with AC shaded pole or capacitor and DC brushless motor are designed for ventilation and spot cooling of internal machinery components, especially in areas in confined spaces. Available also versions tested to withstand harsh environmental conditions (IP55, IP68, all metal and HTR fans).

Documentation available

Document list

Document type Format Size Action
3D step .zip 0.14 MB Download
Declaration Of Conformity EU .pdf 0.17 MB Download
Declaration Of Conformity UKCA .pdf 0.16 MB Download

APPROVALS

Approvals CE; UKCA

ELECTRICAL DATA

Appliance Class I
Capacitor 6 µF
Frequency 50/60 Hz
Insulation Class F
Motor Protection Thermally Protected
Operating Voltage 103.5-126.5 V a.c.
Rated Current 0.70/0.81 A
Rated Power 77/93 W
Rated Voltage 115 V a.c.

ENVIRONMENTAL AND THERMAL DATA

IP Protection Degree IP20
Operating Temperature -25÷70 °C
Storage Temperature -40÷70 °C

GENERIC DATA

Airflow Direction Air exhaust over brackets
Casing Material Die-Casting Aluminium
Electrical Connection Screwless Terminal Block
Fan Noise 66/69 dB(A)
Fixing System Screws
Life Expectancy 50000/59000 h at 40 °C
Wires Section 0.75-2.5 mm²
Wires Section 18-14 AWG

MECHANICAL DATA

Bearing Ball Bearing

PERFORMANCE

Max Airflow 845/935 m³/h
Max Static Pressure 192/199 Pa
RPM 2480/2720 RPM
