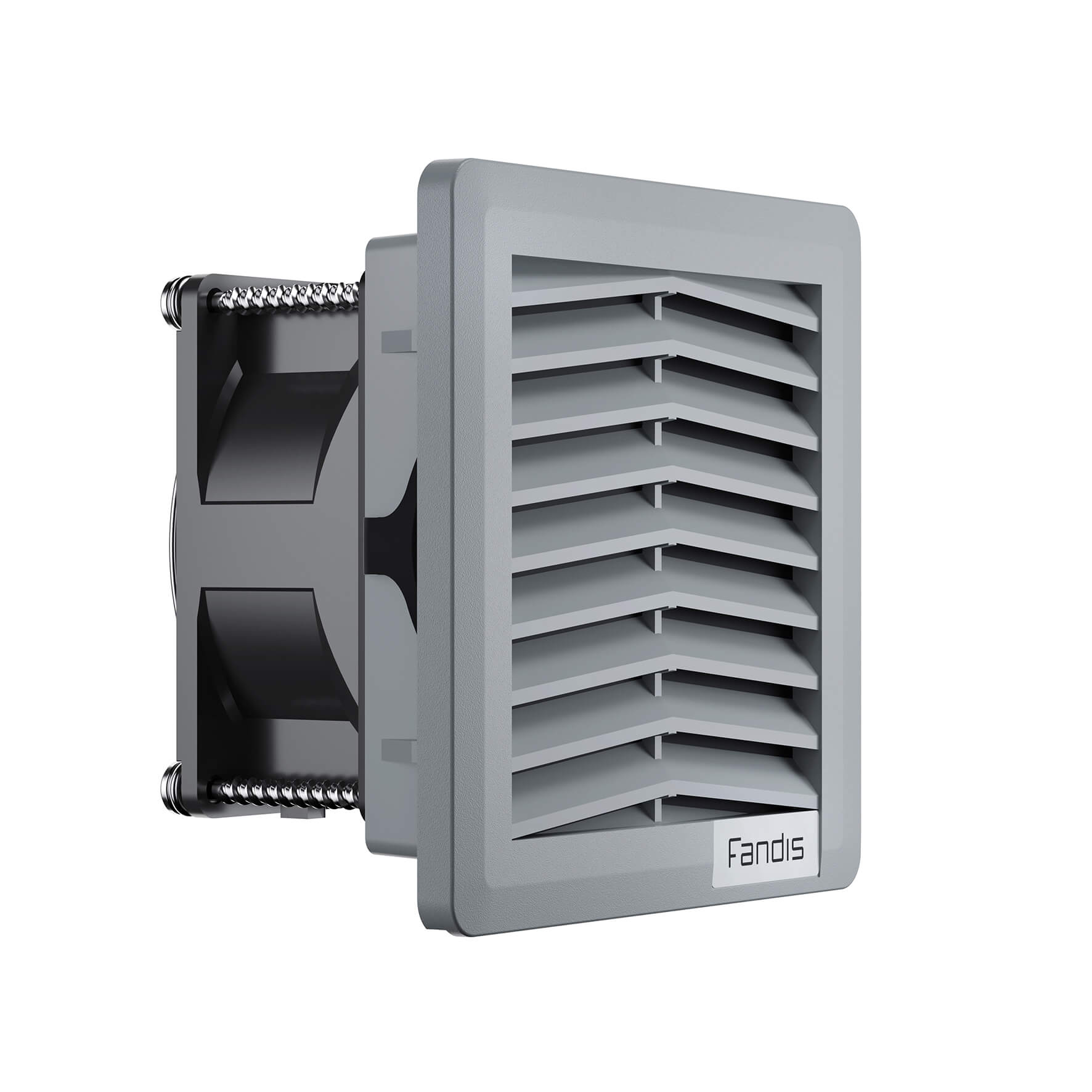

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
| Approvals | CE; cURus; cULus; cCSAus |
|---|
| Motor Protection | Electronically Protected |
|---|---|
| Operating Voltage | 12-27.6 V d.c. |
| Rated Current | 0.085 A |
| Rated Power | 2 W |
| Rated Voltage | 24 V d.c. |
| IP Protection Degree | IP54 |
|---|---|
| Operating Temperature | -10÷55 °C |
| Storage Temperature | -40÷70 °C |
| Airflow Direction | Direct |
|---|---|
| ANSI Code | ANSI 61 Gray |
| Cable Length | 300 mm |
| Casing Material | PC/ABS UL94 5VB |
| Electrical Connection | Wires |
| Fan Noise | 30 dB(A) |
| Filter Class | G3 EN 779 |
| Filter Class | ISO coarse 55% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 100000 h at 25 °C |
| Spare Parts Filter Media | M08FPF |
| Wires Section | 26 AWG |
| Bearing | Ball Bearing |
|---|---|
| Mounting Wall Thickness | 1-2 mm |
| Airflow with Exhaust Filter | 11.5 m³/h |
|---|---|
| Max Airflow | 16 m³/h |
| Max Static Pressure | 28 Pa |
| UL Environmental Type Rating | Type 12 |
|---|---|
| UL File Number Listed | E500932 |
| UL File Number Recognized Component | E237844 |
| UL Surrounding Temperature | 55 °C |
